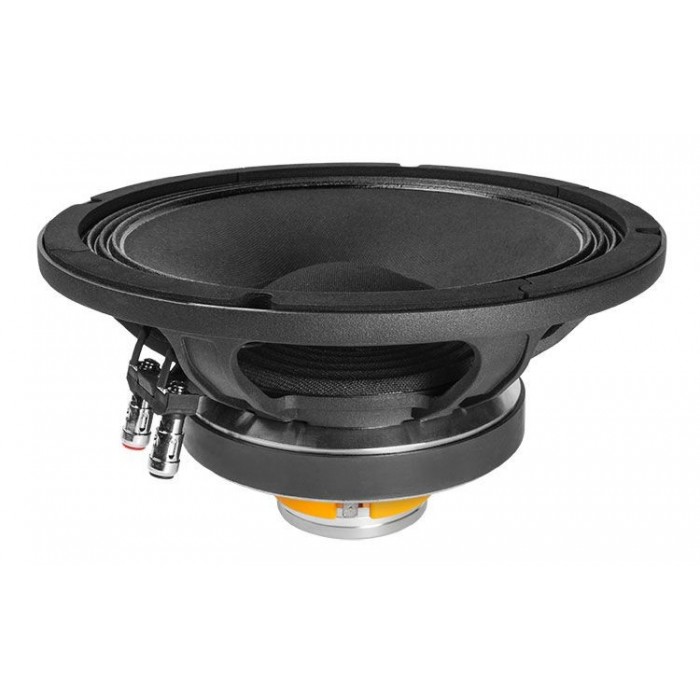

Faital Pro 10HX230 - 8

Difuzor coaxial de 10 inch Faital Pro 10HX230 - 8 Ω.

Specificatii:
Diametru nominal: 250 mm (10 in)
Impedanta nominala: 8 Ω - 8 Ω
Impedanta minima LF - HF: 6.4  - 6.9 Ω
Putere nominala LF - HF: 250 - 30 W
Putere continua program LF - HF: 500 - 60 W
Sensibilitate LF - HF: 96 - 107 dB
Gama frecventa LF: 65 - 4000 Hz
Gama frecventa HF: 1500 - 20000 Hz
Diametrul bobinei LF - HF: 65 - 37 mm (2.56 - 1.46 in)
Material bobina LF - HF: aluminiu
Material suport bobina LF - HF: fibra de sticla - kapton
Adancime bobina LF - HF: 17.4 mm (0.69 in) - 2.1 mm (0.08 in)
Adancime piesa polara : 8 mm (0.31 in) 2.6 mm (0.1 in)
Densitate flux magnetic LF - HF: 1.15 - 1.85 T
Frecventa minima de taiere recomandata: 1.7 kHz
Unghi dispersie HF: 110°
Magnet: Ferita - Ferita - Neodimium
Design surround: Triple Roll

Parametri:
Fs 65 Hz
Re LF 5.3 Ω
Re HF 5.5 Ω
Qes 0.37
Qms 5.8
Qts 0.35
Vas 29.6 dm3
Sd 347 cm2
Xmax 7.37 mm
Xdamage 14.8 mm
Mms 34 g
Bl 14.1 Txm
Le 0.54 mH
Mmd 26.7 g
Cms 0.18 mm/N
Rms 2.4 kg/s
η₀ 2.13 %
EBP 176 Hz

Dimensiuni si masa:
Diametru total: 261 mm (10.28 in)
Diametrul gaurilor de prindere: 246 mm (9.69 in)
Diametrul gaurii de decupaj: 230 mm (9.06 in)
Adancime difuzor: 136.5 mm (5.37 in)
Grosime sasiu: 12 mm (0.47 in)
Masa neta: 5 kg (11.0 lb)
Masa totala cu ambalaj: 5.4 kg (11.9 lb)
Dimensiuni cutie difuzor: 282 x 280 x 140 mm (9.3 x 9.3 x 6.1 in)
