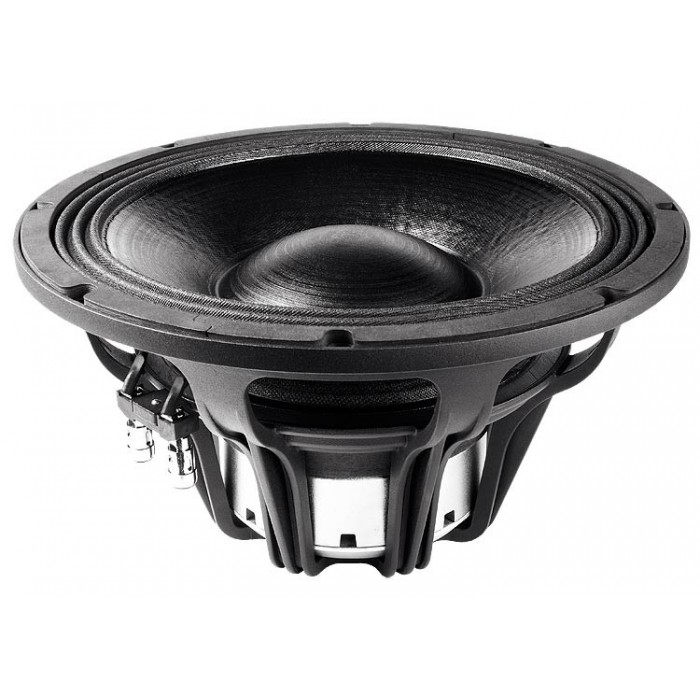

Faital Pro 12HP1060 - 4

Difuzor Faital Pro 12HP1060 - 12" - 1000 W - 95 dB - 4 Ohm.

Specificatii:
Diametru nominal: 300 mm (15 in)
Impedanta nominala: 4 Ω
Impedanta minima: 3.8 Ω
Putere nominala: 1000 W
Putere continua program: 2000 W
Sensibilitate: 95 dB
Gama frecventa: 45 - 2500 Hz
Diametrul bobinei: 100 mm (4 in)
Material bobina: cupru
Material suport bobina: fibra de sticla
Adancime bobina: 28.9 mm (1.14 in)
Adancime piesa polara: 12 mm (0.47 in)
Densitate flux magnetic: 1.22 T
Magnet: Neodim

Parametri:
Fs 45 Hz
Re 2.9 Ω
Qes 0.26
Qms 12.1
Qts 0.25
Vas 33.8 dm3
Sd 518 cm2
Xmax 12.45 mm
Xdamage 21 mm
Mms 138.7 g
Bl 20.7 Txm
Le 1.13 mH
Mmd 125.4 g
Cms 0.09 mm/N
Rms 3.2 kg/s
η₀ 1.13 %
EBP 173 Hz

Dimensiuni si masa:
Diametru total: 316 mm (12.44 in)
Diametrul gaurilor de prindere: 298.5 mm (11.75 in)
Diametrul gaurii de decupaj: 282 mm (11.1 in)
Adancime difuzor: 168.75 mm (6.64 in)
Grosime sasiu: 12.45 mm (0.49 in)
Masa neta: 6.6 Kg (14.6 lb)
Masa totala cu ambalaj: 7.3 Kg (16.1 lb)
Dimensiuni cutie difuzor: 350 x 346 x 216 mm (13.8 x 13.6 x 8.5 in)
