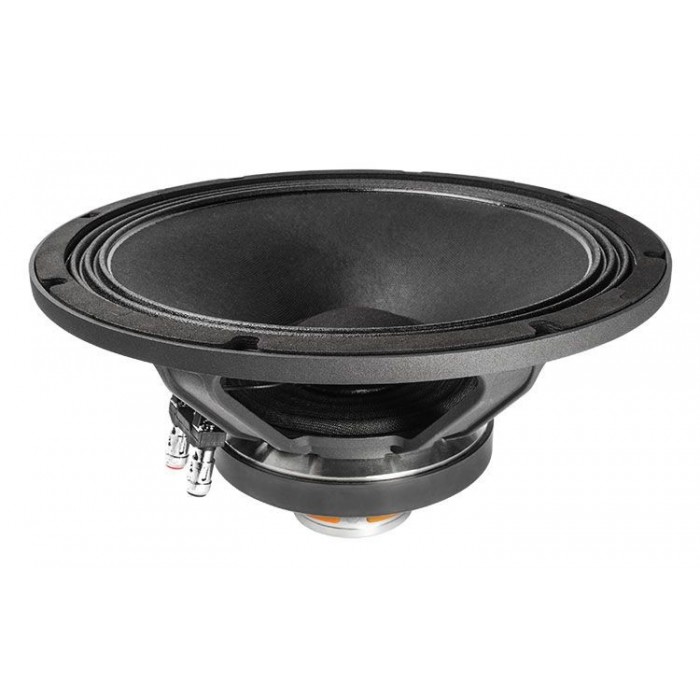

Faital Pro 12HX230 - 16

Difuzor coaxial de 12 inch Faital Pro 12HX230 - 16 Ω.

Specificatii:
Diametru nominal: 300 mm (12 in)
Impedanta nominala: 16 Ω - 16 Ω
Impedanta minima LF - HF: 13.7  - 13.8 Ω
Putere nominala LF - HF: 250 - 30 W
Putere continua program LF - HF: 500 - 60 W
Sensibilitate LF - HF: 96 - 107 dB
Gama frecventa LF: 55 - 5000 Hz
Gama frecventa HF: 1500 - 20000 Hz
Diametrul bobinei LF - HF: 65 - 37 mm (2.56 - 1.46 in)
Material bobina LF - HF: aluminiu - aluminiu
Material suport bobina LF - HF: fibra de sticla - kapton
Adancime bobina LF - HF: 17.2 mm (0.68 in) - 2.1 mm (0.08 in)
Adancime piesa polara : 8 mm (0.31 in) 2.6 mm (0.1 in)
Densitate flux magnetic LF - HF: 1.1 - 1.85 T
Frecventa minima de taiere recomandata: 1.7 kHz
Unghi dispersie HF: 100°
Magnet: Ferita - Neodimium
Design surround: Triple Roll

Parametri:
Fs 56 Hz
Re LF 11.5 Ω
Re HF 11 Ω
Qes 0.59
Qms 10.1
Qts 0.56
Vas 72.3 dm3
Sd 539 cm2
Xmax 7.27 mm
Xdamage 15.25 mm
Mms 45.3 g
Bl 17.6 Txm
Le 0.93 mH
Mmd 31.2 g
Cms 0.18 mm/N
Rms 1.6 kg/s
η₀ 2.08 %
EBP 95 Hz

Dimensiuni si masa:
Diametru total: 316 mm (12.44 in)
Diametru gaurilor de prindere: 298.5 mm (11.75 in)
Diametru gaurii de decupaj: 282 mm (11.1 in)
Adancime difuzor: 162 mm (6.38 in)
Grosime sasiu: 12 mm (0.47 in)
Masa neta: 5.2 kg (11.5 lb)
Masa totala cu ambalaj: 5.7 kg (12.6 lb)
Dimensiuni cutie difuzor: 350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in)
