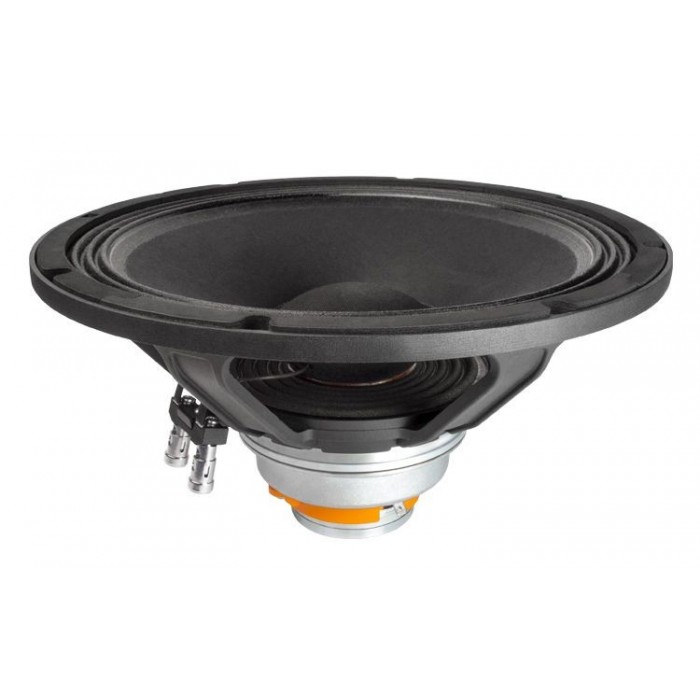

Faital Pro 12HX240 - 8

Difuzor coaxial de 12 inch Faital Pro 12HX240 - 8 Ω.

Specificatii:
Diametru nominal: 300 mm (12 in)
Impedanta nominala: 8 Ω - 8 Ω
Impedanta minima LF - HF: 6.4  - 6.8 Ω
Putere nominala LF - HF: 250 - 30 W
Putere continua program LF - HF: 250 - 30 W
Sensibilitate LF - HF: 97 - 107 dB
Gama frecventa LF: 55 - 5000 Hz
Gama frecventa HF: 1500 - 20000 Hz
Diametrul bobinei LF - HF: 65 - 37 mm (2.56 - 1.46 in)
Material bobina LF - HF: aluminiu -aluminiu
Material suport bobina LF - HF: fibra de sticla - kapton
Adancime bobina LF - HF: 17.4 mm (0.69 in) - 2.1 mm (0.08 in)
Adancime piesa polara : 8 mm (0.31 in) 2.6 mm (0.1 in)
Densitate flux magnetic LF - HF: 1.25 - 1.85 T
Frecventa minima de taiere recomandata: 1.7 kHz
Unghi dispersie HF: 100°
Magnet: Neodimium
Design surround: Triple Roll

Parametri:
Fs 56 Hz
Re LF 5.3 Ω
Re HF 5.5 Ω
Qes 0.38
Qms 11.3
Qts 0.37
Vas 61.1 dm3
Sd 539 cm2
Xmax 7.37 mm
Xdamage 17.4 mm
Mms 53.6 g
Bl 16 Txm
Le 0.45 mH
Mmd 39.5 g
Cms 0.15 mm/N
Rms 1.7 kg/s
η₀ 2.67 %
EBP 147 Hz

Dimensiuni si masa:
Diametru total: 316 mm (12.44 in)
Diametru gaurilor de prindere: 298.5 mm (11.75 in)
Diametru gaurii de decupaj: 280 mm (11.02 in)
Adancime difuzor: 162 mm (6.38 in)
Grosime sasiu: 12 mm (0.47 in)
Masa neta: 4.2 kg (9.3 lb)
Masa totala cu ambalaj: 5 kg (11 lb)
Dimensiuni cutie difuzor: 350 x 346 x 216 mm (13.8 x 13.6 x 8.5 in)
