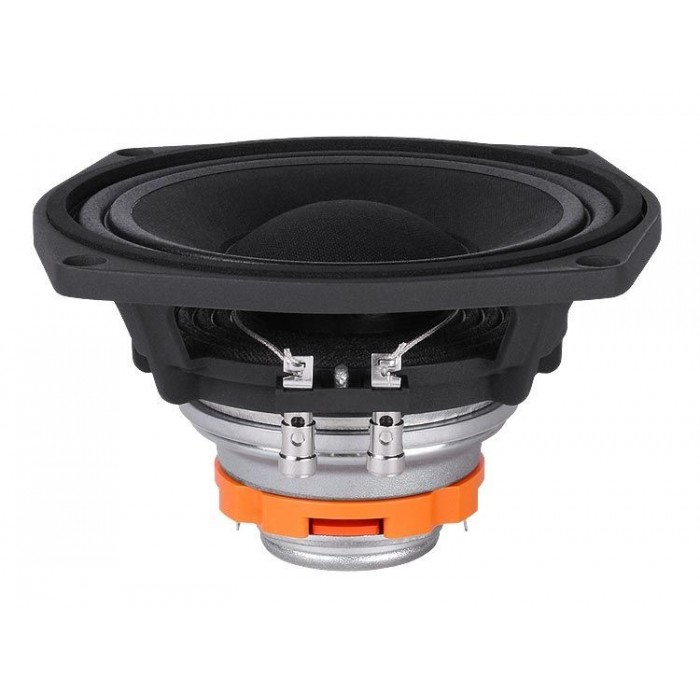

Faital Pro 6HX150 - 8

Difuzor coaxial de 6 inch Faital Pro 6HX150 - 8 Ω.

Specificatii:
Diametru nominal: 160 mm (6 in)
Impedanta nominala: 8 Ω - 8 Ω
Impedanta minima LF - HF: 6  - 6.3 Ω
Putere nominala LF - HF: 150 - 15 W
Putere continua program LF - HF: 300 - 30 W
Sensibilitate LF - HF: 93 - 104 dB
Gama frecventa LF: 90 - 5000 Hz
Gama frecventa HF: 1500 - 18000 Hz
Diametrul bobinei LF - HF: 52 - 25 mm (2 - 1 in)
Material bobina LF - HF: cupru - aluminiu
Material suport bobina LF - HF: fibra de sticla - kapton
Adancime bobina LF - HF: 10.7 mm (0.42 in) - 1.7 mm (0.07 in)
Adancime piesa polara : 6 mm (0.24 in) -  2 mm (0.08 in)
Densitate flux magnetic LF - HF: 1.35 - 1.3 T
Frecventa minima de taiere recomandata: 1.7 kHz
Unghi dispersie HF: 90°
Magnet: Neodimium - Neodimium
Design surround: Half Roll

Parametri:
Fs 88 Hz
Re LF 5.5 Ω
Re HF 6 Ω
Qes 0.35
Qms 8.3
Qts 0.34
Vas 6.3 dm3
Sd 139.2 cm2
Xmax 4.35 mm
Xdamage 10.15 mm
Mms 14 g
Bl 12 Txm
Le 0.64 mH
Mmd 12.1 g
Cms 0.23 mm/N
Rms 0.9 kg/s
η₀ 1.41 %
EBP 251 Hz

Dimensiuni si masa:
Diametru total: 186.5/162 mm (7.34/6.37 in)
Diametrul gaurilor de prindere: 172 mm (6.77 in)
Diametrul gaurii de decupaj: 147 mm (5.79 in)
Adancime difuzor: 95 mm (3.74 in)
Grosime sasiu: 9.3 mm (0.37 in)
Masa neta: 1.3 kg (2.9 lb)
Masa totala cu ambalaj: 2.8 kg (6.2 lb)
Dimensiuni cutie difuzor: 202 x 202 x 134 mm (8.0 x 8.0 x 5.3 in)
