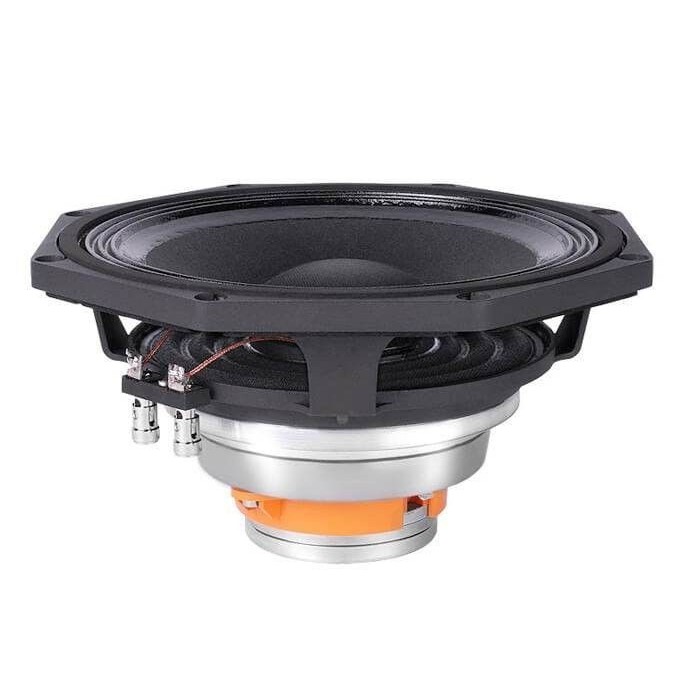

Faital Pro 8HX200 - 8

Difuzor coaxial de 8 inch Faital Pro 8HX200 - 8 Ω.

Specificatii:
Diametru nominal: 200 mm (8 in)
Impedanta nominala: 8 Ω - 8 Ω
Impedanta minima LF - HF: 6.6  - 6.9 Ω
Putere nominala LF - HF: 250 - 30 W
Putere continua program LF - HF: 500 - 60 W
Sensibilitate LF - HF: 95 - 107 dB
Gama frecventa LF: 75 - 4000 Hz
Gama frecventa HF: 1500 - 20000 Hz
Diametrul bobinei LF - HF: 65 - 37 mm (2.56 - 1.46 in)
Material bobina LF - HF: aluminiu -aluminiu
Material suport bobina LF - HF: fibra de sticla - kapton
Adancime bobina LF - HF: 12.5 mm (0.49 in) - 2.1 mm (0.08 in)
Adancime piesa polara : 8 mm (0.31 in) 2.6 mm (0.10 in)
Densitate flux magnetic LF - HF: 1.2 - 1.85 T
Frecventa minima de taiere recomandata: 1.7 kHz
Unghi dispersie HF: 90°
Magnet: Neodymium
Design surround: Triple Roll

Parametri:
Fs 76 Hz
Re LF 5.5 Ω
Re HF 5.5 Ω
Qes 0.31
Qms 10.5
Qts 0.30
Vas 11.9 dm3
Sd 205 cm2
Xmax 4.92 mm
Xdamage 10.2 mm
Mms 22 g
Bl 13.8 Txm
Le 0.51 mH
Mmd 20.3 g
Cms 0.20 mm/N
Rms 1 kg/s
η₀ 1.67 %
EBP 245 Hz

Dimensiuni si masa:
Diametru total: 223.75/ 207.9 mm (8.81/ 8.18 in)
Diametru gaurilor de prindere: 210 mm (8.27 in)
Diametru gaurii de decupaj: 183 mm (7.20 in)
Adancime difuzor: 110.7 mm (4.36 in)
Grosime sasiu: 10.7 mm (0.42 in)
Masa neta: 2.7 Kg (6.0 lb)
Masa totala cu ambalaj: 3.4 Kg (7.5 lb)
Dimensiuni cutie difuzor: 227 x 224 x 132 mm (8.9 x 8.8 x 5.2 in)
