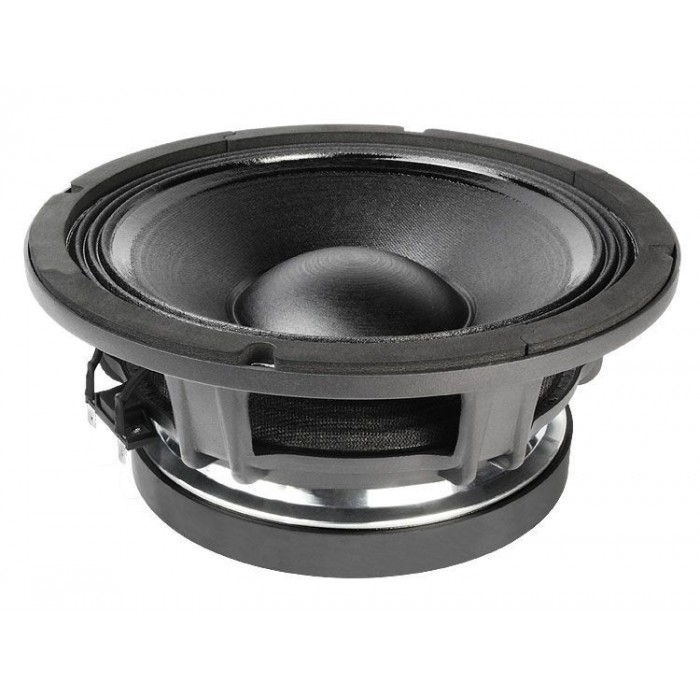

Woofer Faital Pro 10FH530-8

Difuzor bass Faital Pro 10FH530 (8 Ω).

Specificatii:

• Diametru nominal: 250 mm (10 in)
• Impedanta nominala: 8 Ω
• Impedanta minima: 6.4 Ω
• Putere nominala: 500 W
• Putere continua program: 1000 W
• Sensibilitate: 97 dB
• Gama frecventa: 60 - 4000 Hz
• Diametrul bobinei: 77 mm (3 in)
• Material bobina: aluminiu
• Material suport bobina: fibra de sticla
• Adancime bobina: 18.5 mm (0.73 in)
• Adancime piesa polara: 10.5 mm (0.41 in)
• Densitate flux magnetic: 1.2 T
• Magnet: Ferita
• Suspensie: Rola tripla

Parametri Difuzor bass Faital Pro 10FH530 (8 Ω):

• Fs 60 Hz
• Re 5.1 Ω
• Qes 0.25
• Qms 12.4
• Qts 0.25
• Vas 23.5 dm3
• Sd 347 cm2
• Xmax 7.5 mm
• Xdamage 18.8 mm
• Mms 50.3 g
• Bl 19.5 Txm
• Le 0.8 mH
• Mmd 43 g
• Cms 0.14 mm/N
• Rms 1.5 kg/s
• η₀ 1.94 %
• EBP 240 Hz

Dimensiuni si masa:

• Diametru total: 261 mm (10.28 in)
• Diametrul gaurilor de prindere: 246 mm (9.69 in)
• Diametrul gaurii de decupaj: 230 mm (9.06 in)
• Adancime difuzor: 130 mm (5.12 in)
• Grosime sasiu: 11.5 mm (0.45 in)
• Volum ocupat de driver: 2 litri (0.071 ft3)
• Masa neta: 7.5 Kg (16.5 lb)
• Masa totala cu ambalaj: 8 Kg (17.6 lb)
• Dimensiuni cutie difuzor: 294 x 290 x 203 mm (11.6 x 11.4 x 8 in)
