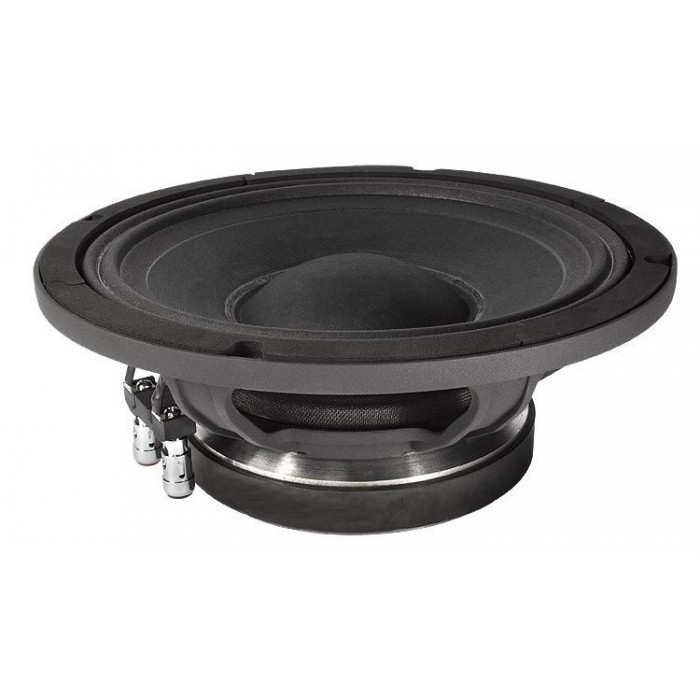

Woofer Faital Pro 10PR310-16

Difuzor bass Faital Pro 10PR310 (16 Ω).

Specificatii:

• Diametru nominal: 250 mm (10 in)
• Impedanta nominala: 16 Ω
• Impedanta minima: 13.6 Ω
• Putere nominala: 300 W
• Putere continua program: 600 W
• Sensibilitate: 97 dB
• Gama frecventa: 60 - 4000 Hz
• Diametrul bobinei: 65 mm (2.56 in)
• Material bobina: aluminiu
• Material suport bobina: fibra de sticla
• Adancime bobina: 12.5 mm (0.49 in)
• Adancime piesa polara: 8 mm (0.31 in)
• Densitate flux magnetic: 1.2 T
• Magnet: Ferita
• Suspensie: M-Roll


Parametri Difuzor bass Faital Pro 10PR310 (16 Ω):

• Fs 65 Hz
• Re 12.1 Ω
• Qes 0.52
• Qms 5.3
• Qts 0.47
• Vas 29 dm3
• Sd 348 cm2
• Xmax 4.92 mm
• Xdamage 15.25 mm
• Mms 35 g
• Bl 18.7 Txm
• Le 1.22 mH
• Mmd 27.7 g
• Cms 0.17 mm/N
• Rms 2.7 kg/s
• η₀ 1.56 %
• EBP 125 Hz

Dimensiuni si masa:

• Diametru total: 261 mm (10.28 in)
• Diametrul gaurilor de prindere: 246 mm (9.69 in)
• Diametrul gaurii de decupaj: 230 mm (9.06 in)
• Adancime difuzor: 109 mm (4.29 in)
• Grosime sasiu: 12 mm (0.47 in)V
• olum ocupat de driver: 1.3 litri (0.046 ft3)
• Masa neta: 4.1 Kg (9 lb)
• Masa totala cu ambalaj: 4.7 Kg (10.4 lb)
• Dimensiuni cutie difuzor: 282 x 280 x 140 mm (11.1 x 11.0 x 5.5 in)
