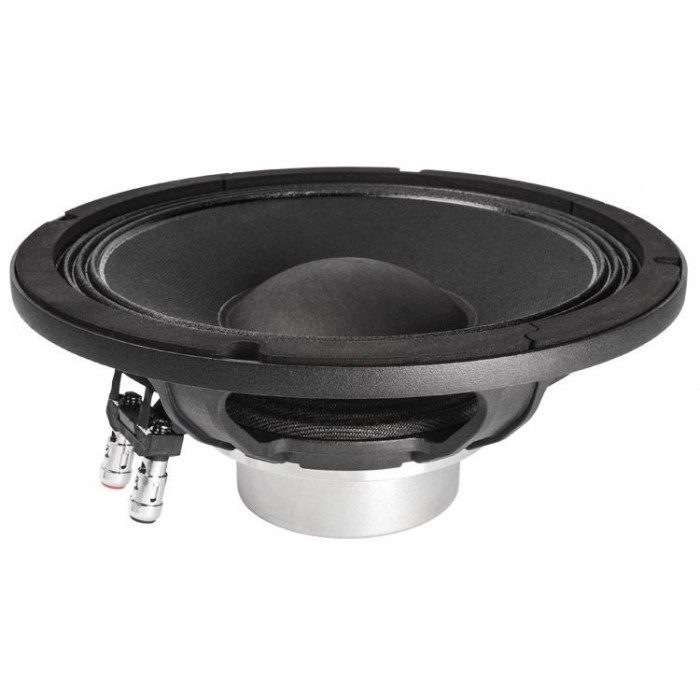

Woofer Faital Pro 10PR320-8

Difuzor bass Faital Pro 10PR320 (8 Ω).

Specificatii:

• Diametru nominal: 250 mm (10 in)
• Impedanta nominala: 8 Ω
• Impedanta minima: 6.4 Ω
• Putere nominala: 300 W
• Putere continua program: 600 W
• Sensibilitate: 96 dB
• Gama frecventa: 50 - 4000 Hz
• Diametrul bobinei: 65 mm (2.56 in)
• Material bobina: aluminiu
• Material suport bobina: fibra de sticla
• Adancime bobina: 17.4 mm (0.69 in)
• Adancime piesa polara: 8 mm (0.31 in)
• Densitate flux magnetic: 1.2 T
• Magnet: Neodim
• Suspensie: Rola tripla


Parametri Difuzor bass Faital Pro 10PR320 (8 Ω):

• Fs 48 Hz
• Re 5.3 Ω
• Qes 0.31
• Qms 4.6
• Qts 0.29
• Vas 52.7 dm3
• Sd 347 cm2
• Xmax 7.37 mm
• Xdamage 17 mm
• Mms 35 g
• Bl 13.5 Txm
• Le 0.57 mH
• Mmd 27.7 g
• Cms 0.31 mm/N
• Rms 2.3 kg/s
• η₀ 1.84 %
• EBP 155 Hz

Dimensiuni si masa:

• Diametru total: 261 mm (10.28 in)
• Diametrul gaurilor de prindere: 246 mm (9.69 in)
• Diametrul gaurii de decupaj: 230 mm (9.06 in)
• Adancime difuzor: 110 mm (4.33 in)
• Grosime sasiu: 12 mm (0.47 in)
• Volum ocupat de driver: 1.3 litri (0.046 ft3)
• Masa neta: 2.55 Kg (5.6 lb)
• Masa totala cu ambalaj: 3.1 Kg (6.8 lb)
• Dimensiuni cutie difuzor: 282 x 280 x 140 mm (11.1 x 11.0 x 5.5 in)
