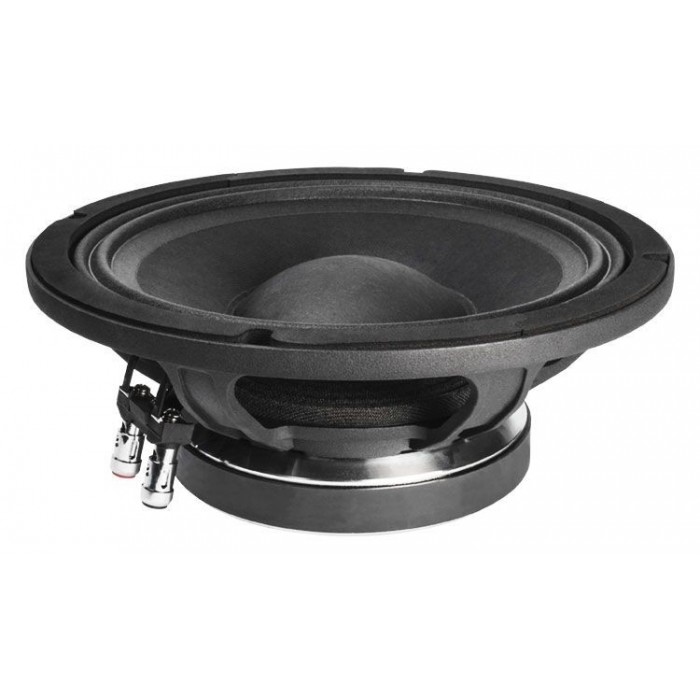

Woofer Faital Pro 10PR330-8

Difuzor bass Faital Pro 10PR330 (8 Ω).

Specificatii:

• Diametru nominal: 250 mm (10 in)
• Impedanta nominala: 8 Ω
• Impedanta minima: 6.6 Ω
• Putere nominala: 300 W
• Putere continua program: 600 W
• Sensibilitate: 96 dB
• Gama frecventa: 60 - 3150 Hz
• Diametrul bobinei: 65 mm (2.56 in)
• Material bobina: aluminiu
• Material suport bobina: fibra de sticla
• Adancime bobina: 17.4 mm (0.69 in)
• Adancime piesa polara: 8 mm (0.31 in)
• Densitate flux magnetic: 1.2 T
• Magnet: Ferita
• Suspensie: M-Roll


Parametri Difuzor bass Faital Pro 10PR330 (8 Ω):

• Fs 60 Hz
• Re 5.3 Ω
• Qes 0.36
• Qms 4.6
• Qts 0.33
• Vas 32.5 dm3
• Sd 348 cm2
• Xmax 7.37 mm
• Xdamage 15.25 mm
• Mms 36.5 g
• Bl 14.3 Txm
• Le 0.64 mH
• Mmd 29.2 g
• Cms 0.19 mm/N
• Rms 3 kg/s
• η₀ 1.91 %
• EBP 167 Hz

Dimensiuni si masa:

• Diametru total: 261 mm (10.28 in)
• Diametrul gaurilor de prindere: 246 mm (9.69 in)
• Diametrul gaurii de decupaj: 230 mm (9.06 in)
• Adancime difuzor: 111 mm (4.37 in)
• Grosime sasiu: 12 mm (0.47 in)
• Volum ocupat de driver: 1.3 litri (0.046 ft3)
• Masa neta: 4.1 Kg (9 lb)
• Masa totala cu ambalaj: 4.7 Kg (10.4 lb)
• Dimensiuni cutie difuzor: 282 x 280 x 140 mm (11.1 x 11 x 5.5 in)
