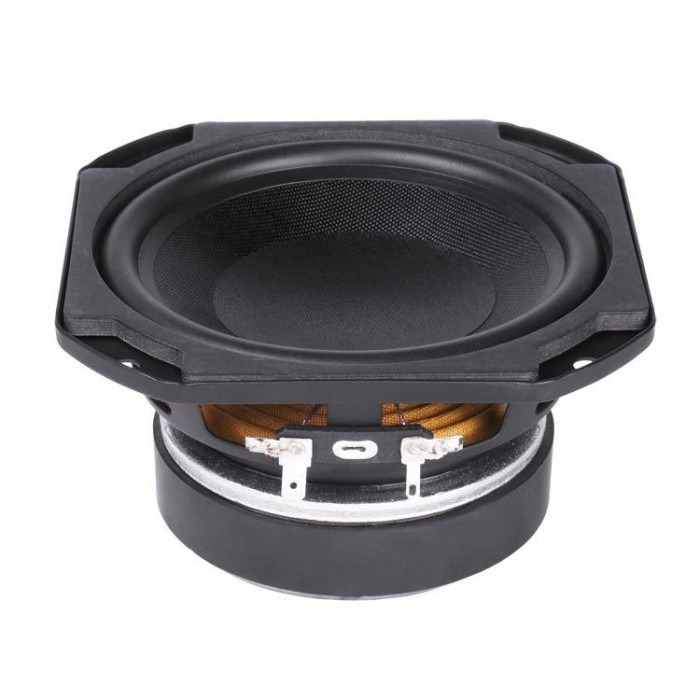

Woofer Faital Pro 5FE100-8

Difuzor bass Faital Pro 5FE100 (8 Ω).

Specificatii:

• Diametru nominal: 130 mm (5 in)
• Impedanta nominala: 8 Ω
• Impedanta minima: 6.3 Ω
• Putere nominala: 80 W
• Putere continua program: 160 W
• Sensibilitate: 88 dB
• Gama frecventa: 63 - 6300 Hz
• Diametrul bobinei: 32 mm (1.26 in)
• Material bobina: cupru
• Material suport bobina: kapton
• Adancime bobina: 12.5 mm (0.49 in)
• Adancime piesa polara: 6 mm (0.24 in)
• Densitate flux magnetic: 1 T
• Magnet: Ferita
• Suspensie: Half Roll


Parametri Difuzor bass Faital Pro 5FE100 (8 Ω):

• Fs 65 Hz
• Re 5.4 Ω
• Qes 0.48
• Qms 8.2
• Qts 0.45
• Vas 5.7 dm3
• Sd 84 cm2
• Xmax 5.25 mm
• Xdamage 9.5 mm
• Mms 10.5 g
• Bl 6.9 Txm
• Le 0.53 mH
• Mmd 9.6 g
• Cms 0.57 mm/N
• Rms 0.52 kg/s
• η₀ 0.31 %
• EBP 135 Hz

Dimensiuni si masa:

• Diametru total: 144.8/124.5 mm (5.7/4.9 in)
• Diametrul gaurilor de prindere: 133 mm (5.24 in)
• Diametrul gaurii de decupaj: 114 mm (4.49 in)
• Adancime difuzor: 71.5 mm (2.81 in)
• Grosime sasiu: 6.5 mm (0.25 in)
• Volum ocupat de driver: 0.3 litri (0.011 ft3)
• Masa neta: 1.12 kg (2.5 lb)
• Masa totala cu ambalaj: 10.1 kg (22.3 lb)
• Dimensiuni cutie difuzor: 302 x 275 x 186 mm (11.9 x 10.8 x 7.3 in)
