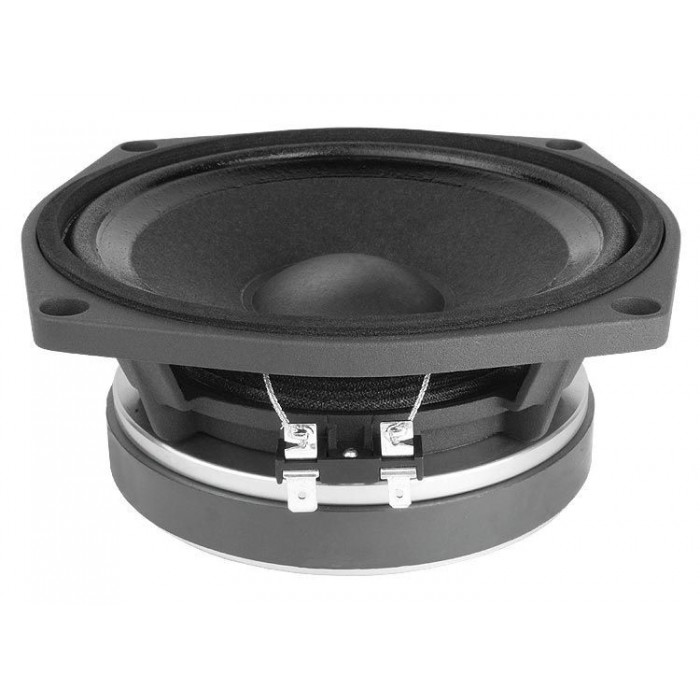

Woofer Faital Pro 6PR110-8

Difuzor bass Faital Pro 6PR110 (8 Ω).

Specificatii:

• Diametru nominal: 160 mm (6 in)
• Impedanta nominala: 8 Ω
• Impedanta minima: 7 Ω
• Putere nominala: 150 WPute
• re continua program: 300 W
• Sensibilitate: 96 dB
• Gama frecventa: 100 - 6000 Hz
• Diametrul bobinei: 37 mm (1.46 in)
• Material bobina: aluminiu
• Material suport bobina: kapton
• Adancime bobina: 7.5 mm (0.30 in)
• Adancime piesa polara: 6 mm (0.24 in)
• Densitate flux magnetic: 1.35 T
• Magnet: Ferita
• Suspensie: Half Roll


Parametri Difuzor bass Faital Pro 6PR110 (8 Ω):

• Fs 100 Hz
• Re 6 Ω
• Qes 0.6
• Qms 4.2
• Qts 0.53
• Vas 5.6 dm3
• Sd 137 cm2
• Xmax 2.75 mm
• Xdamage 11.6 mm
• Mms 12 g
• Bl 8.5 Txm
• Le 0.22 mH
• Mmd 10.2 g
• Cms 0.2 mm/N
• Rms 1.8 kg/s
• η₀ 0.86 %
• EBP 167 Hz

Dimensiuni si masa:

• Diametru total: 186.5/162 mm (7.34/6.37 in)
• Diametrul gaurilor de prindere: 172 mm (6.77 in)
• Diametrul gaurii de decupaj: 147 mm (5.79 in)
• Adancime difuzor: 80 mm (3.15 in)
• Grosime sasiu: 9.5 mm (0.37 in)
• Volum ocupat de driver: 0.7 litri (0.025 ft3)
• Masa neta: 2.2 kg (4.9 lb)
• Masa totala cu ambalaj: 2.4 kg (5.3 lb)
• Dimensiuni cutie difuzor: 190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in)
