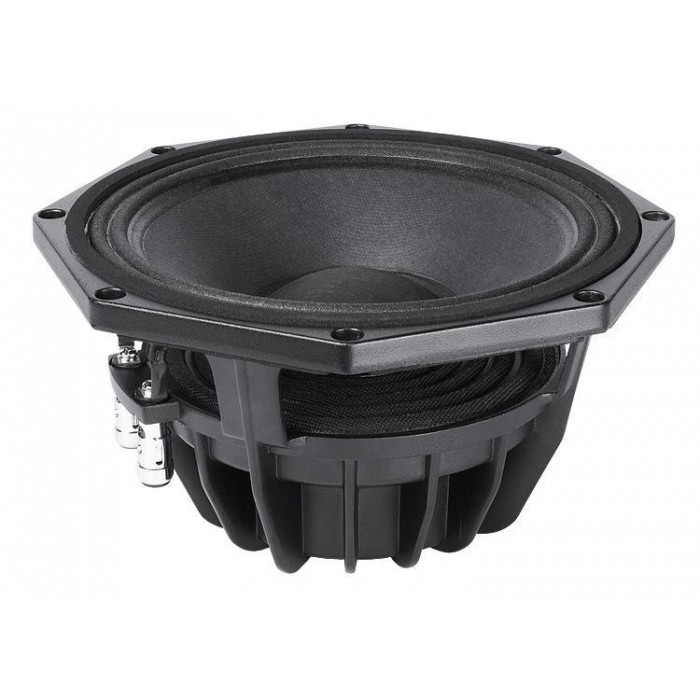

Woofer Faital Pro W8N8-150-8

Difuzor bass Faital Pro W8N8-150 (8 Ω).

Specificatii:

• Diametru nominal: 200 mm (8 in)
• Impedanta nominala: 8 Ω
• Impedanta minima: 6.5 Ω
• Putere nominala: 150 W
• Putere continua program: 300 W
• Sensibilitate: 94 dB
• Gama frecventa: 80 - 6300 Hz
• Diametrul bobinei: 52 mm (2 in)
• Material bobina: aluminiu
• Material suport bobina: fibra de sticla
• Adancime bobina: 13.7 mm (0.54 in)
• Adancime piesa polara: 8 mm (0.31 in)
• Densitate flux magnetic: 1 T
• Magnet: Neodim
• Suspensie: M-Roll


Parametri Difuzor bass Faital Pro W8N8-150 (8 Ω):

• Fs 76 Hz
• Re 5.8 Ω
• Qes 0.59
• Qms 4.7
• Qts 0.52
• Vas 14.4 dm3
• Sd 222 cm2
• Xmax 5.52 mm
• Xdamage 12 mm
• Mms 20.9 g
• Bl 9.9 Txm
• Le 0.55 mH
• Mmd 17.2 g
• Cms 0.21 mm/N
• Rms 2.1 kg/s
• η₀ 1.04 %
• EBP 129 Hz

Dimensiuni si masa:

• Diametru total: 223.75/207.9 mm (8.81/8.18 in)
• Diametrul gaurilor de prindere: 210 mm (8.27 in)
• Diametrul gaurii de decupaj: 183 mm (7.20 in)
• Adancime difuzor: 116.7 mm (4.59 in)
• Grosime sasiu: 10.7 mm (0.42 in)
• Volum ocupat de driver: 1 litru (0.035 ft3)
• Masa neta: 1.7 kg (3.7 lb)
• Masa totala cu ambalaj: 2.6 kg (5.7 lb)
• Dimensiuni cutie difuzor: 235 x 235 x 155 mm (9.3 x 9.3 x 6.1 in)
